Motorized high-temperature butterfly valve(type ZKJWa/b-0.1Gk/b ) is matched with motorized actuator. It can change the flow of high temperature media in pipeline according to different control signals in metallurgy, building material, chemical industry and generating plant to realize automatic control and remote control of industry manufacture process effect.
Remarks：The above technology capacity is matched with domestic DKJ motorized actuator. The technical capacity of other introduced motorized actuators refer to appendix description.

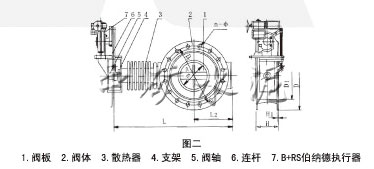

Ⅲ、Outline and installation dimension：Outline structure drawing refers to drawing
1, drawing2,drawing 3,drawing 5. Outline installation dimension refers to table 3, table 4, table 5 and table 7.
Ⅳ、Type description refers to appendix 1. Electric principle refers to operation manual of the relevant motorized actuator.

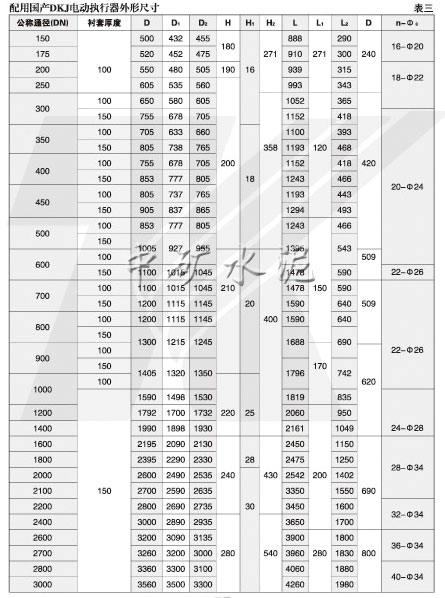

Outline dimension of the matched domestic DKJ motorized actuator.
Outline dimension of the matched SIMENS SIPOS·5 motorized actuator.
Outline dimension of the matched DMR Songdao motorized actuator.
Outline dimension of the matched Nucom glory motorized actuator.

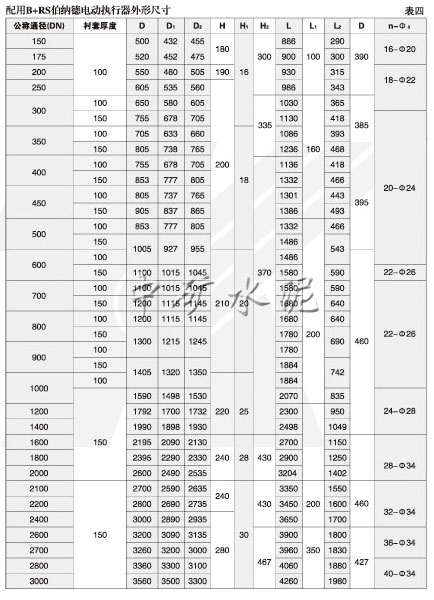

Outline dimension of the matched B+RS Bonaide motorized actuator.
